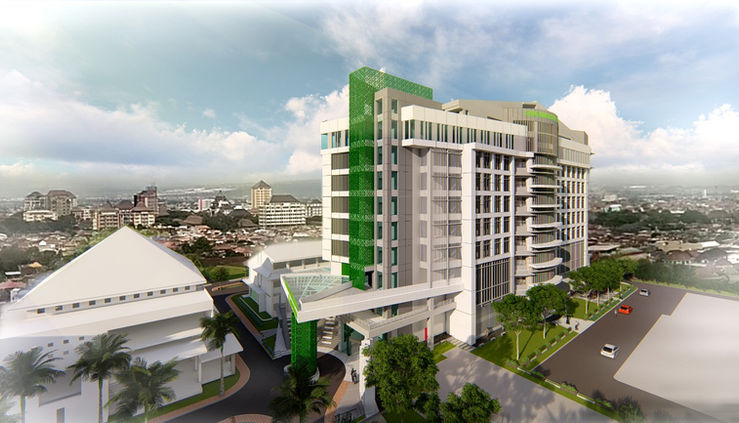

GEDUNG KULIAH 1 UNISMA
Malang. INDONESIA
green building
GOLD
(target)
Universitas Islam Malang (UNISMA) is a private university founded by public figures and Islamic Scholars of Nahdlatul Ulama in Malang
The façade design of this campus building was designed by using High-Performance Solar Control Low-E Glass 6 mm Panasap green. As the result, the Overall Thermal Transfer Value (OTTV) calculation results are 40.45 watts/m2 which is under the SNI baseline, and 51.55% net lettable area with a minimum of 300 lux of natural light intensity.
Building cooling system uses, Variable Refrigerant Flow (VRF) Air-Cooled system, The lighting uses energy-saving LED lights with Lighting Power Density 2.16 watt/m2. High-performance elevators with a regenerative-drive system reduces the building’s energy use. Zero runoff rainwater rainfall is applied as an effort to control floods.
Water savings reach 88.73% compared to baseline. Water savings are obtained by the use of water-efficiency sanitary ware as much as 71.61 % of the total sanitary ware units, and by recycling condensate & rainwater as alternative clean water resources. Condensate and rainwater are treated at the Sewage Treatment Plant (STP), then recycling water is used for toilet flushing and landscape irrigation.
Energy Saving
22,03%
54,97 kWh/m2
Baseline:
249,53 kWh/m2/year
Design:
194,56 kWh/m2/year
Water Saving
88,73%
44,36 L/person/day
Baseline:
50 L/person/day
Design:
5,64 L/person/day
Green Area
12,73%
550.66 m2
CO2 emission reduction:
323,64 ton/year
Target Point in Design Recognition:
Max.
Point:
Appropriate Site Development (ASD)
Energy Efficiency and Conservation (ECC)
Water Conservation (WAC)
Material Resources & Cycle (MRC)
10
17
12
26
19
21
2
Indoor Health & Comfort (IHC)
4
5
Building Environmental Management (BEM)
3
6
Project Facts
Location: Jakarta. INDONESIA
Service: Greenship Certification
Year: 2019-2020
